Product ID: K-MOD101

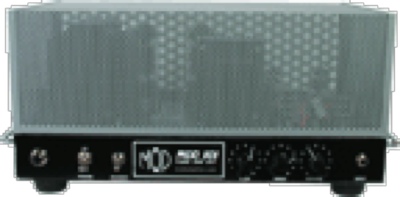

Kit Guitar Amp Mod 101
Kit Guitar Amp Mod 101
MOD 101 Guitar Amp Kit - 60 Watts of tube power using either 6L6s or EL34s, choose from 32 different variations of the circuit to suit your tonal preferences. You provide the tools and solder - everything else is here including electronic components, vacuum tubes, pre-drilled steel chassis, box and wire. MOD 101 Guitar Amp Kit Features: All Tube Design (solid-state diodes used only for full-wave rectification) 60W output power into 4, 8, 16 and 20 ??_ 1 channel with customizable: tone stack, power tubes, negative feedback, input miller capacitance volt divider/LP filter, and preamp cathode bypass cap (all parts included) Vintage channel controls: bass, treble and volume Vintage pilot lamp and screw-on jewel cover for power-on indication DPDT power switch circuit for instant high-voltage drain in power-off Standby Switch Output Impedance Selector Switch: 4, 8, 16 and 20 Tubes included: one 12AX7 (preamp), one 12AT7 (phase inverter), one matched pair of 6L6GC???s and one matched pair of EL34???s (JJ Electronic brand) Hammond Mfg 374BX world power transformer and 1650P push-pull output transformer Fixed bias class AB power tube operation with bias pot adjustment Point to point hand wiring using terminal strips Carbon film resistors Mallory coupling caps Pre-punched painted steel chassis Assembled Kit Weight: 24 lbs. Assembled Kit Dimensions: 16 Width x 8 Depth x 8 1/8 Height MOD 101 Instructional Features: Detailed, easy to follow instructions include high resolution computer drawings for parts list and every step of assembly (e-mail info@modampkits.comfor sample instructions) Tips for soldering and wiring On-line technical support


Brand: Generic
Category: Mod Guitar Amplifier Kits


List Price: $569.99
Price: $474.00
