Product ID: K-MOD102

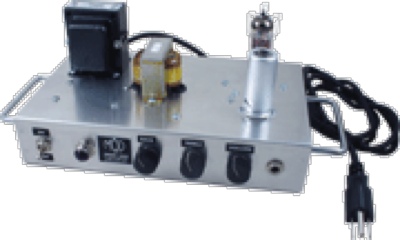

Kit Guitar Amp Mod 102
Kit Guitar Amp Mod 102
The MOD 102 is a great place to start for those interested in building their own tube amp. It is based on a classic American tube circuit design combined with a British style Class A output tube section. At low volume it produces a clean chimey tone that moves into smooth overdrive at higher volumes. All parts are included along with a pre-drilled aluminum chassis, wire and tubes (1 EL84 and 1 12AX7). Puts out at least 5 watts. The chassis layout is open for easy assembly using the clear, easy to follow instructions. You will need your own tools and solder. All Tube Design (solid-state diodes used only for full-wave rectification) 5W output power into 8 _ 1 channel Vintage channel controls: bass, treble and volume Vintage pilot lamp and screw-on jewel cover for power-on indication Output Impedance: 8 _ Tubes included: one 12AX7 (preamp), one EL84 (JJ Electronic brand) Hammond Mfg 269EX power transformer and P-T31 single ended output transformer. Cathode biased class A power tube operation (no bias adjustment needed). Point to point hand wiring using terminal strips Carbon film resistors Metalized polyester coupling caps Pre-punched steel chassis Assembled Kit Weight: 4.25 lbs. Assembled Kit Dimensions: 10? Width x 6? Depth x 5 1/8? Height MOD 102 Instructional Features: Detailed, easy to follow instructions include high resolution computer drawings for parts list and every step of assembly (e-mail info@modkitsdiy.comfor sample instructions) Tips for soldering and wiring On-line technical support

Brand: Generic
Category: Mod Guitar Amplifier Kits

List Price: $277.20
Price: $231.00
